ORCHIDEORAMA
AVAILABILITY
The building is a canopy. it is neither an empty nave nor a free plan; it is rather a shed or foliage with intermittent supports gathering gardens. This allows mixing and blurring the different activities to which the orchideorama is subject with vegetation, the fauna and the weather of the botanical Garden: birds and plants exhibitions, weddings, concerts, fashion shows or gastronomic festivals enjoy the garden instead of being isolated from it.
ARRANGEMENT AND SCALE
The orchideorama is based on a hexagonal module. while the plan allows flexibility by adding hexagons where needed, in elevation, each metal tree is articulated with the scale of the surrounding trees and relates to their strategies: it concentrates the technical installation network in the trunk, mixes the structure’s base with the growth of gardens or understory plants and defines a translucent canopy at the same height as the surrounding foliages. The regular and flexible perimeter geometry allows the orchideorama to comfortably adjust to the void left by the previous pavilion in the forest and restore the tissue.
SPATIAL PATTERN

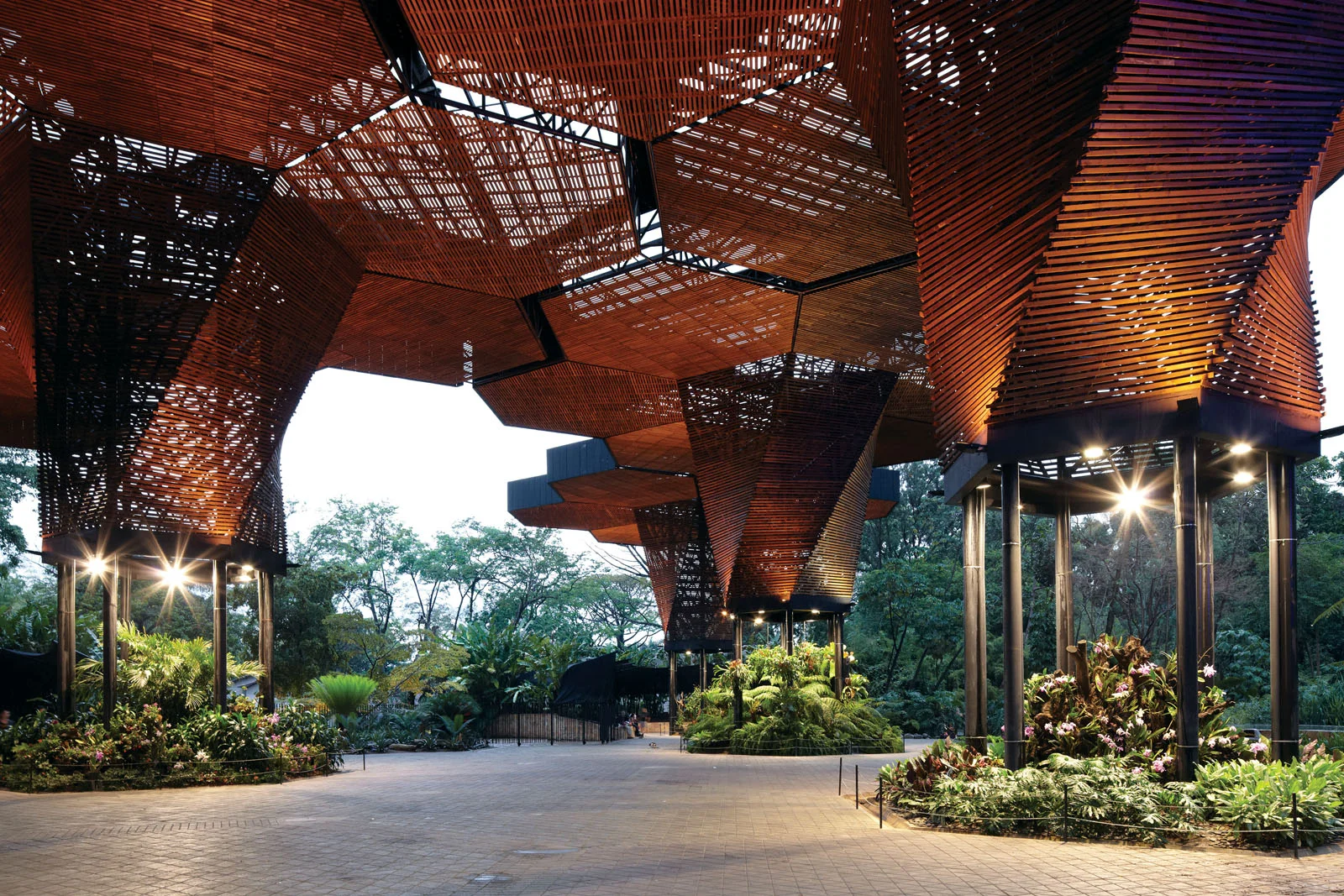

Each module of seven hexagons constitutes the spatial, structural and bioclimatic pattern that allows repetition, orderly growth over time, flexibility to avoid touching the existing trees and adaptation to budget. The module has a central hexagon which serves as a hollow trunk with six columns in which technical installations are housed (structure, lighting, water collection), as well as gardens, hot air ventilation and access to rainwater. These patios were conceived as convergence vortices and gathering of landscape and architecture, therefore the geometry of the wooden envelope shows the torsion concentrated there.
ORQUIDEORAMA
DISPONIBILIDAD
El edificio es un dosel. no es una nave vacía o una planta libre, sino un cobertizo o follaje con apoyos intermitentes que concentran jardines. Esto permite mezclar y difuminar las diversas actividades a que está sujeto el orquideorama con la vegetación, la fauna y el clima del Jardín botánico: exposiciones de aves y plantas, matrimonios, conciertos, desfiles de moda o festivales gastronómicos disfrutan del Jardín, en lugar de aislarse de él.
ORGANIZACIÓN Y ESCALA
El orquideorama parte de un módulo de geometría hexagonal. Mientras en planta permite flexibilidad al ir sumando hexágonos donde convenga, en alzado cada árbol metálico se articula a la escala de los árboles circundantes y se aproxima a sus estrategias: concentra las redes técnicas en el tronco, mezcla la base de la estructura con el crecimiento de jardines o plantas de sotobosque, define una cubierta translúcida a la altura de los follajes vecinos. La geometría regular pero de perímetro flexible le permite al orquideorama ajustarse cómodamente al vacío en el bosque que dejó el pabellón anterior y restituir el tejido.
PATRÓN ESPACIAL
Cada módulo de siete hexágonos constituye el patrón espacial, estructural y bioclimático que permite la repetición, el crecimiento ordenado en el tiempo, la flexibilidad para evitar tocar árboles existentes y la adaptación a presupuestos. El módulo posee un hexágono central que actúa como un tronco hueco con seis columnas en el que se concentran las redes técnicas (estructura, iluminación, recolección de agua), los jardines y las salidas de aire caliente y acceso de lluvia. Estos patios se comprendieron como vórtices de convergencia o reunión del paisaje y la arquitectura, y por ello la geometría del revestimiento en madera evidencia la torsión que se concentra allí.
Video: Orquideorama - Cristobal Palma
Programa: Exposición de jardines y eventos múltiples: conciertos, matrimonios, fiestas, ferias.
Localización: Jardín botánico de Medellín, Colombia
Año de construcción: 2006
Área: 4.000 m2
Ecosistema: bosque húmedo tropical pre-montano
Altura sobre el nivel del mar: 1.460 m
Temperatura: oscila entre 16° C y 31° C
Orientación solar: uniforme
Dirección de los vientos: norte-sur
Valor del metro cuadrado: US $ 500
Estructura: Columnas y cerchas metálicas.
Materiales: Revestimientos en madera cultivada, adoquines en concreto, tejas metálicas y en policarbonato.
Cliente: Jardín botánico de Medellín
Diseño: Plan:b (Felipe Mesa + Alejandro bernal) en sociedad con Camilo Restrepo y J. Paul Restrepo
Arquitectos colaboradores: Viviana Peña, Catalina Patiño, Carolina Gutiérrez, Lina Gil, Jorge Buitrago
Empresa constructora: Ménsula S.A.
Program: Orchid and garden exhibitions; other exhibits. Varied events (concerts, weddings, parties, fairs).
Location: Jardín botánico de Medellín, Colombia
Year of construction: 2006
Area: 4.000 m2
Ecosystem: Humid Pre-Montane Forest
Height above sea level: 1.460 m
Temperature: oscillates between 16° C and 31° C
Solar orientation: uniform
Wind direction: north-south
Value per square meter: US $ 500
Structure: Steel columns and beams.
Materials: Harvested wood linings; concrete pavement, steel and polycarbonate roof tiling.
Client: Jardín botánico de Medellín
Design: Plan:b (Felipe Mesa + Alejandro bernal) associated with Camilo Restrepo and J. Paul Restrepo
Team: Viviana Peña, Catalina Patiño, Carolina Gutiérrez, Lina Gil, Jorge Buitrago
Construction company: Ménsula S.A.
