SKYLINE CLOUD
1. Situación
El Skyline Park de Denver fue inicialmente diseñado por el famoso Arquitecto Paisajista Lawrence Halprin, y como en otros de sus proyectos, intentó conectar las tres manzanas del parque a través de una nueva topografía construida en piedra de la región, mezclada con fuentes y estanques. Luego de decisiones políticas el parque fue transformado a través de un nuevo diseño plano y homogéneo que mantuvo pequeños fragmentos del anterior. En ese contexto y con el encargo de realizar una instalación provisional para el verano, que detonara usos y actividades en el parque, optamos por trabajar en la manzana más homogénea, plana e inactiva, definida por un gran rectángulo horizontal de hierba sobre el parking de un edificio institucional hermético.
2. Nube – Bosque
Para detonar actividades públicas y recreativas en el verano, propusimos módulos cubiertos a medio camino entre la escala de un edificio y la del amueblamiento urbano de la ciudad: Esta escala permite armar o desarmar fácilmente estas estructuras o moverlas completas entre varias personas por la ciudad, generando nuevas zonas de sombra sobre la hierba para descansar, leer, dormir, conversar o pasar un rato, pero también pueden ser usadas por entidades públicas para la realización de eventos de mayor escala: mercados públicos, festivales gastronómicos, eventos deportivos, etc.
Estas sombrillas invertidas, funcionan como un bosque en sombra o como una nube liviana y pueden ser almacenadas en invierno y otoño, y usadas en verano y primavera.
3. Materiales
La estructura metálica se construyó con el sistema de barras y ensambles “unistrut”, resistente, barato y liviano. Y las cubiertas se hicieron con textiles industriales para invernaderos. Para dar estabilidad contra los fuertes vientos de Denver, algunas barras del sistema conectan los módulos a nivel del suelo, y permiten localizar algunas rocas de la región que actúan como pesos que evitan el volcamiento, y como sillas perimetrales. Desde el centro de cada módulo se suspende una luz industrial que enciende en la noche y funciona por medio de un panel solar que se carga durante el día.
Video: Skyline Cloud - Cristobal Palma
Nombre: Skyline Cloud
Uso: Instalación temporal
Año: 2013
Dimensión/Dimension: Variable
Localización/ Location: Skyline Park. Denver, Colorado. USA
Ecosistema: Semi desértico
Altura sobre el nivel del mar: 1.600m
Temperatura: -8 - 32º C; Humedad (Rel): 22% - 82%
Estructura: Unistrut
Materiales: Unistrut, cloth
Arquitectos: Plan:b arquitectos
Dirección de proyecto: Felipe Mesa + Federico Mesa
Equipo de trabajo: Daniel Tobón, Carlos Blanco, Clara Restrepo
Cliente: Bienal de las Americas 2013
Créditos Fotográficos: Cristobal Palma, Plan:b arquitectos
SKYLINE CLOUD
1. Location
The Skyline Park in Denver was initially designed by the famous landscape architect Lawrence Halprin, and like in his other projects, he aimed to connect the three blocks of the park through a new built topography using local stone, ponds and fountains. Due to political decisions the park was transformed into a new flat and homogenous design that maintained small fragments of the previous one. In this context and with the task of creating a temporary installation for the Summer that would spark off the use and activities in the park, we opted to work on the most homogenous, flat and inactive block, defined by a large rectangle oflawn above the parking lot of a hermetic institutional building.
2. Cloud – Forest

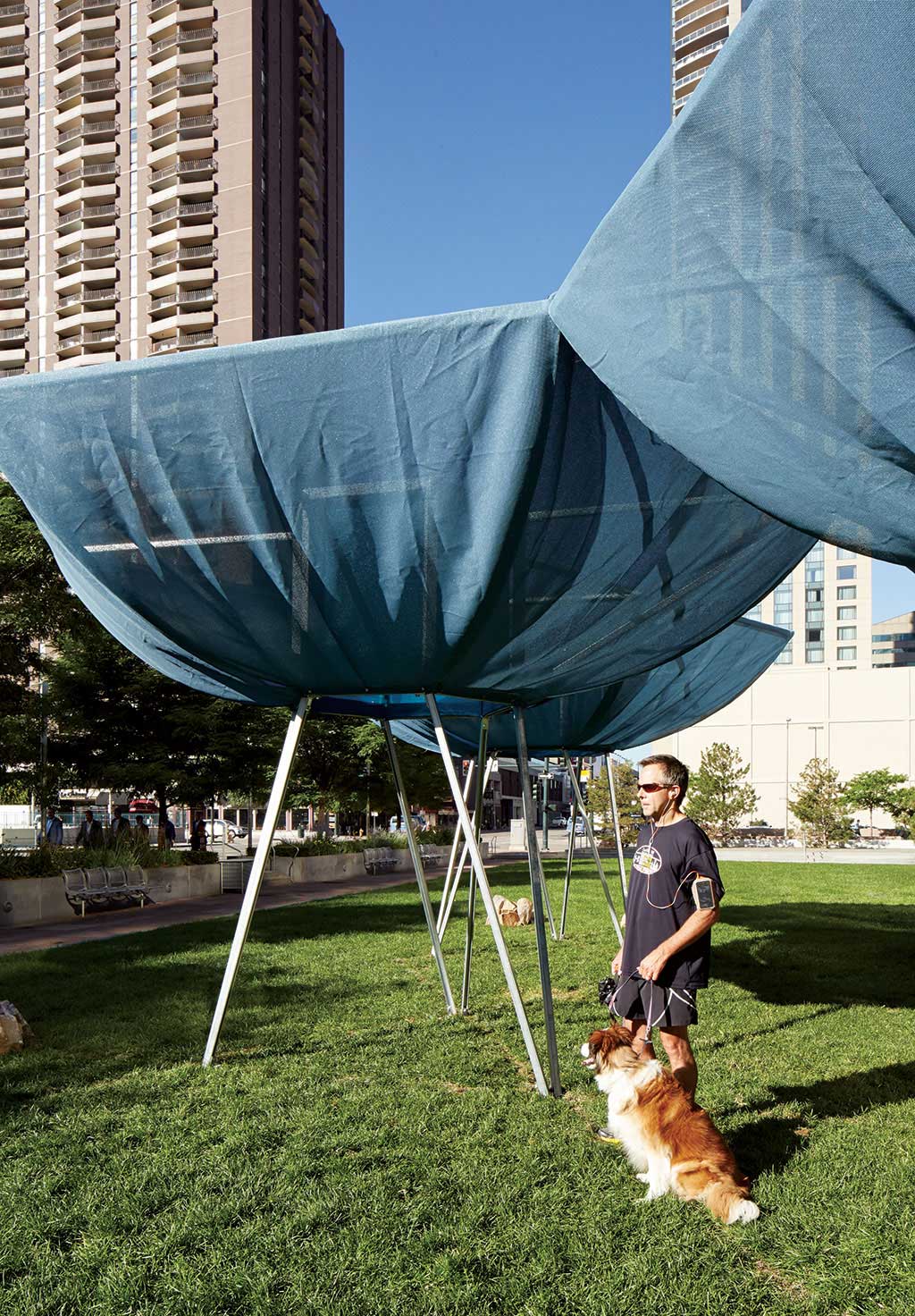

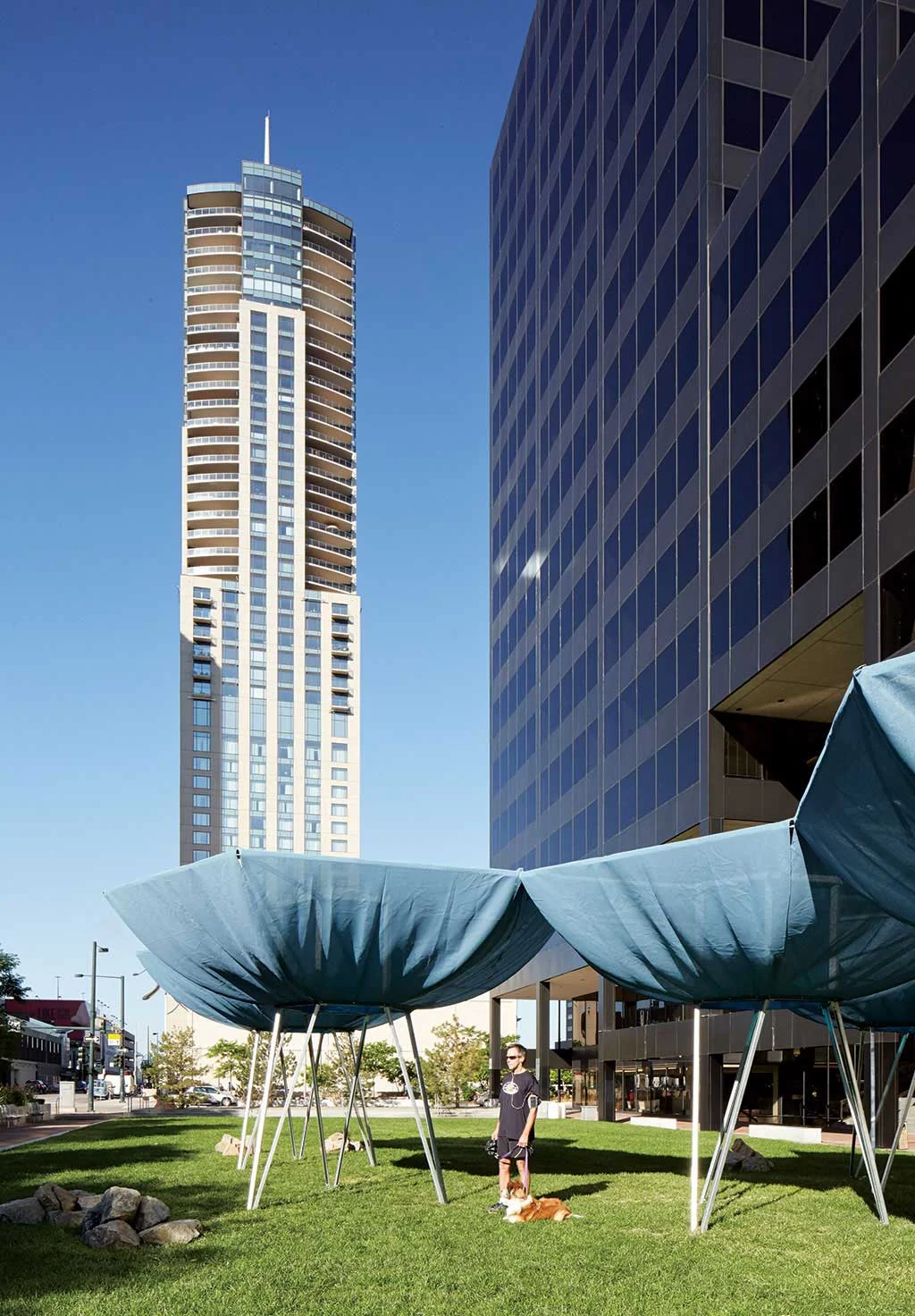

To spark off recreational and public activities in the summer, we proposed covered modules situated halfway between the scale of a building and that of the city’s urban amenities. This scale easily allows to assemble and disassemble these structures or to move them all together between various people around the city, generating new shaded areas on the lawn to rest, read, sleep, chat or hang out, but they can also be used by public entities for larger scale events: public markets, food festivals, sport events, etc.
These inverted umbrellas work like a shaded forest or a light cloud that can be stored during the autumn and winter and be used during spring and summer.
3. Materials
The metal structure was built using the “Unistrut” system of rods and joints: resistant, cheap and light. The roofs were made out of industrial textiles used for greenhouses. To give stability against the strong winds of Denver, some of the system´s rods connect the modules at ground level and allow to place some rocks of the region which act as weights to prevent the structure from falling over, as well as seating along the perimeter. From the center of each module hangs an industrial light that turns on at night powered by a solar panel that charges during the day.
Name: Skyline Cloud
Use: Temporary installation
Year: 2013
Dimension: Variable
Location: Skyline Park. Denver, Colorado. USA
Ecosystem: Desert like
Elevation (above sea level): 1600m
Temperature: -8 - 32º C; Humidity (Rel): 22% - 82%
Structure: Unistrut
Materials: Unistrut, cloth
Architects: Plan:b arquitectos
Project Manager: Felipe Mesa + Federico Mesa
Work team: Daniel Tobón, Carlos Blanco, Clara Restrepo
Client: Biennial of the Americas 2013
Photography: Cristobal Palma, Plan:b arquitectos
